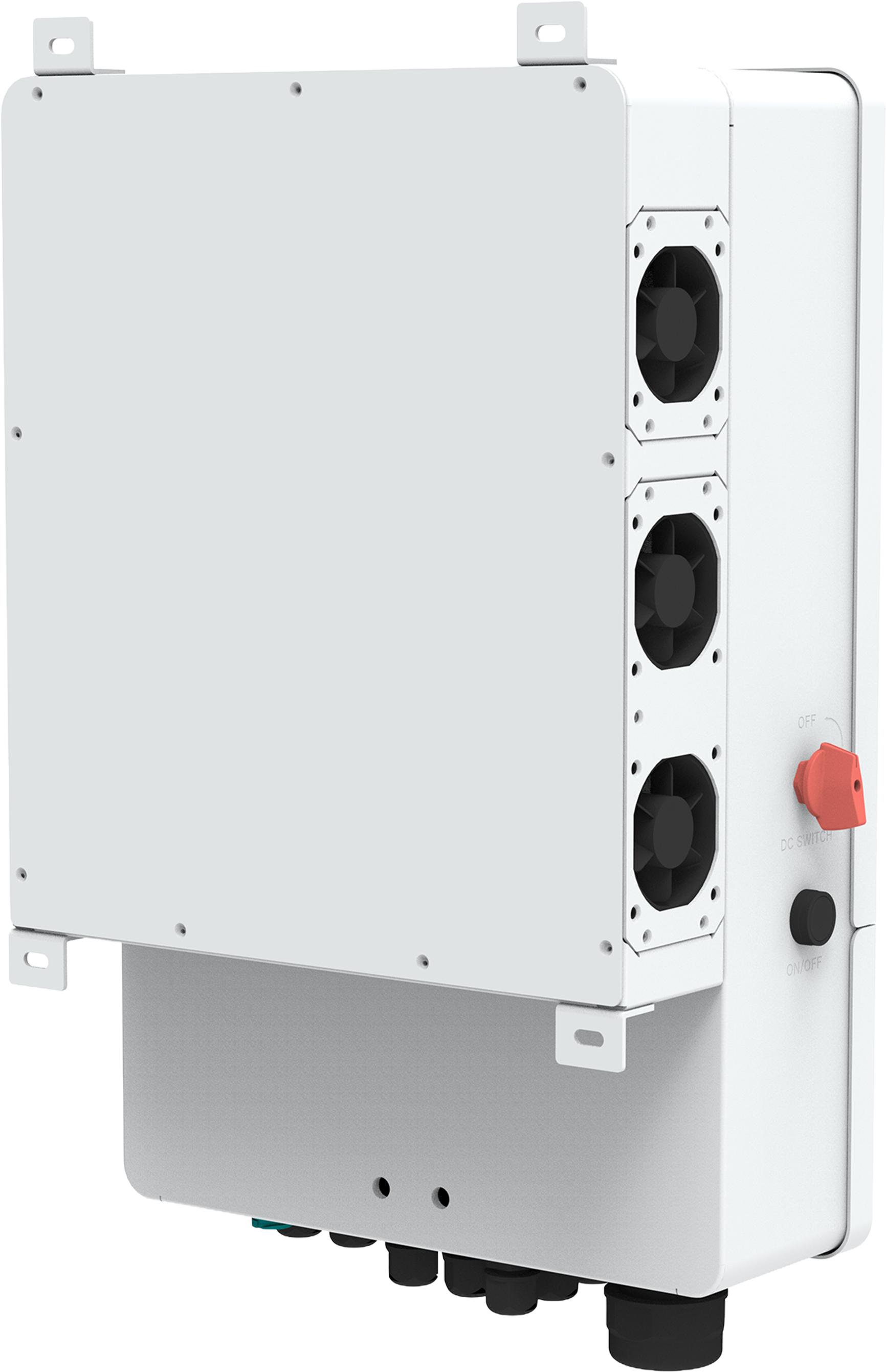

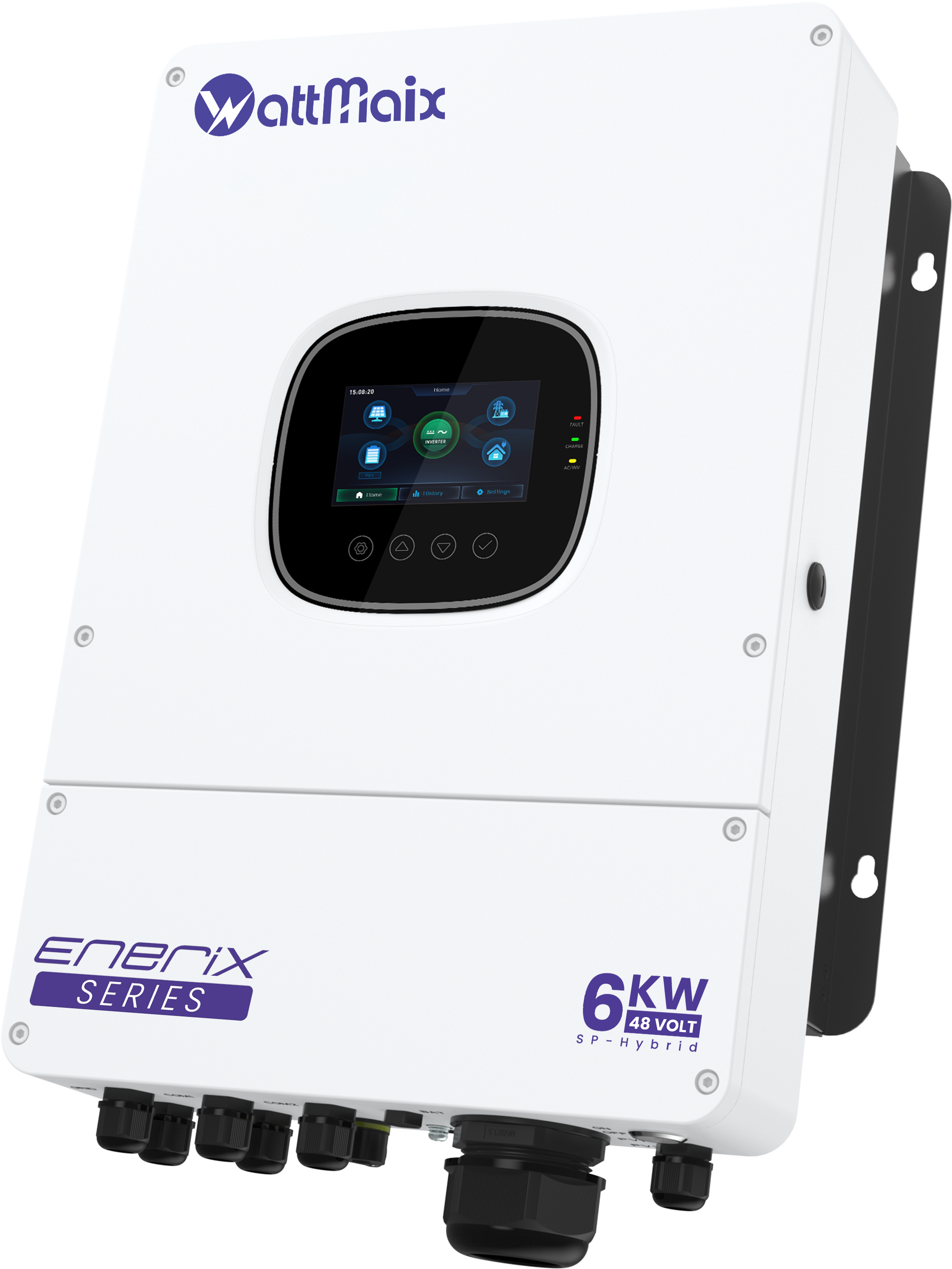

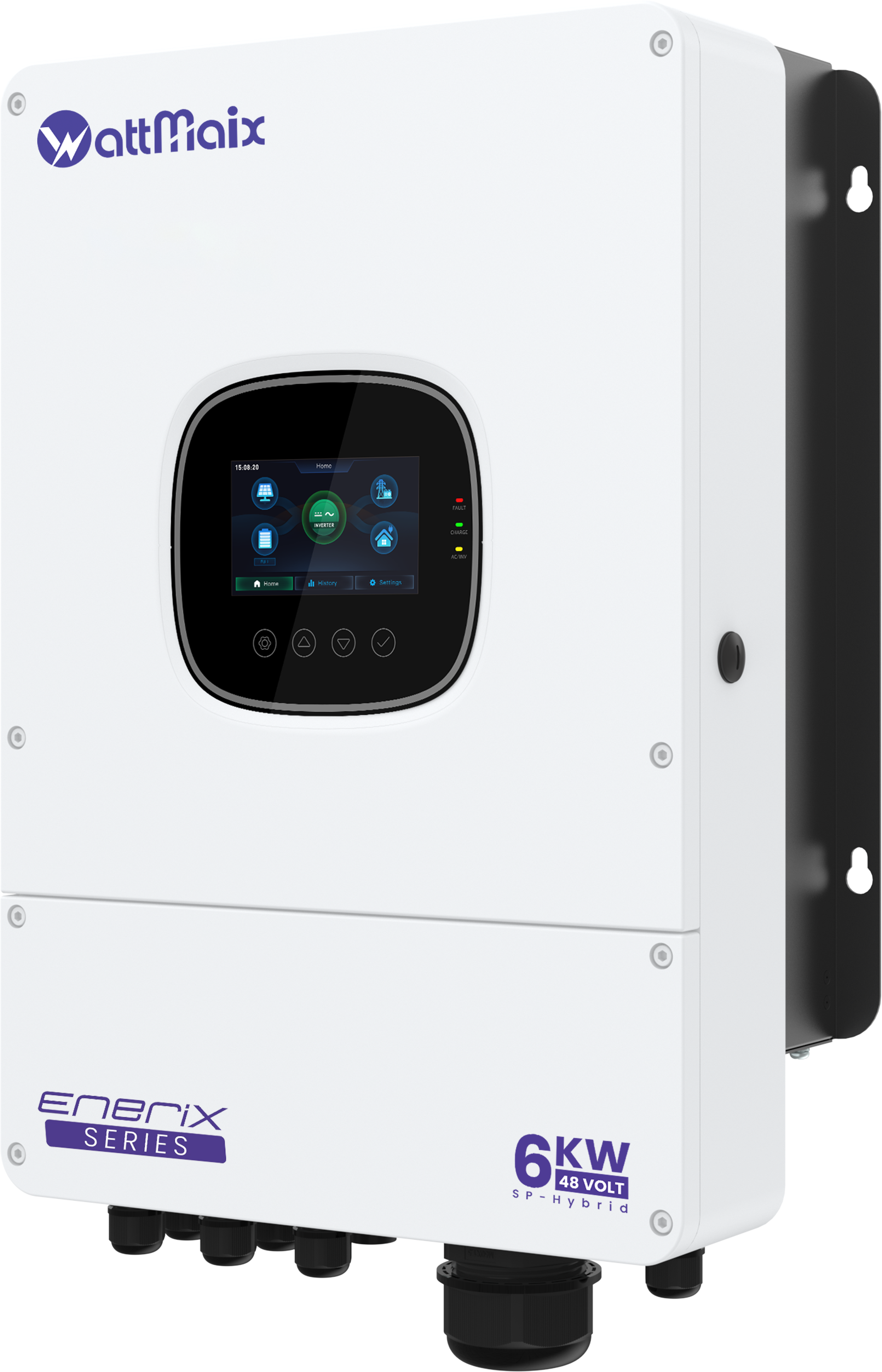

ENERIX SERIES – Hybrid Inverter

General

• Single Phase | 2 MPPTs

• Power Range: 4kW / 4.6kW / 5.5kW / 6kW

Key Features

Efficiency

• Advanced MPPT with up to 99.9% efficiency

• Up to 16A + 16A PV input current

Reliable

• Outputs high-quality pure sine wave AC power

• IP65 protection degree

Safety

• Comprehensive security from hardware to software

• Multiple safety approvals

User-Friendly

• Industrial design with modern aesthetic look

• Easy to install and simple to use

All-in-One

• Up to 100A charging current

• Supports Li-ion battery BMS communication

Intelligent

• Exclusive Li-ion battery BMS dual activation

• Time-slot function to save cost with peak-valley

Technical Specifications

Off-Grid Output

• Rated Output Power: 4000W / 4600W / 5500W / 6000W

• Max Peak Power: 8000VA / 9200VA / 11000VA / 12000VA

• Rated Output Voltage: 230Vac (Single Phase)

• Load Capacity: 3HP / 4HP

• Frequency: 50Hz / 60Hz

• Switching Time: 10ms

On-Grid Output

• Rated Output Power: 4000W / 4600W / 5500W / 6000W

• Max Apparent Power: 8000VA / 9200VA / 11000VA / 12000VA

• Rated Output Current: 17.4A / 20A / 24A / 26A

• Max Output Current: 19.1A / 22A / 26.4A / 28.6A

• THDi: < 3%

• Power Factor: 0.8 leading to 0.8 lagging

Battery

• Battery Type: Lead-acid / Li-ion

• Rated Voltage: 48V

• Voltage Range: 40 – 60 VDC

• Max Charging Current: 100A

PV Input

• MPPT Count: 2

• Max Input Power: 3000W–4500W per MPPT

• Max Input Current: 16A + 16A

• Max Open Circuit Voltage: 500V

• MPPT Voltage Range: 120 – 450V

Efficiency

• MPPT Tracking Efficiency: 99.9%

• Max Efficiency: 97.5%

General

• Parallel Support: 1–6 units

• Dimensions: 556 × 345 × 182 mm

• Weight: 20 kg

• Protection: IP65

• Temperature: -25°C to 60°C

• Noise: < 60 dB

Communication

• RS485 / CAN / USB

• Optional: WiFi / GPRS

Certification

• EN50549-1, G99, NRS-097

• IEC62109 Safety Standards

• RoHS Compliant
