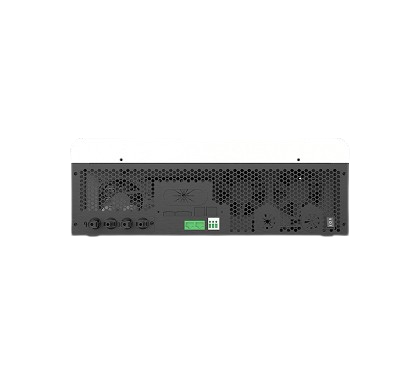

Key Features

MPPT

• Built-in two MPPT (6KW–11KW)

• Wide PV input range: 60 ~ 450 VDC

Battery

• Battery equalization function for extended life cycle

• Reserved communication port (RS485, CAN) for BMS

On & Off-Grid

• REVO VM IV series suitable for both on-grid off-grid applications

Easy to Use

• Configurable AC/PV output usage time prioritization

Parallel Function

• Parallel operation up to 6 units

Easy Access

• Communication via WiFi or Bluetooth

• Touch button with large 5” colorful LCD

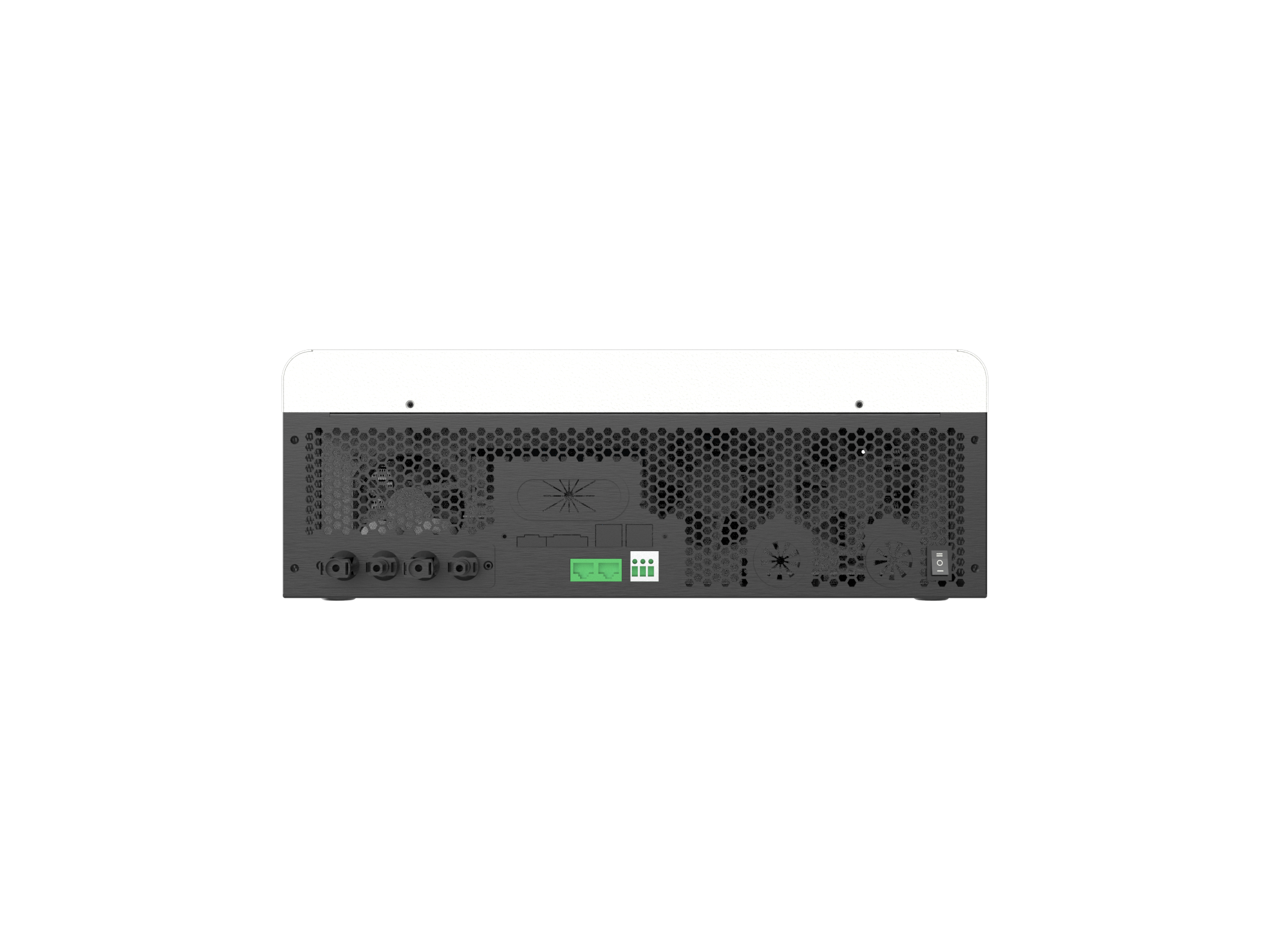

• Series: 8.2 / 10.2 kW

Energy Flow Schematic

With Battery Connected

• To Load

• Discharging

• Charging

• Solar Power Input

• Utility Power Input

Without Battery Connected

• Charging

• Solar Power Input

• Utility Power Input

Technical Specifications – NORD SERIES

AC Input

• Nominal Voltage: 230 VAC

• Voltage Range: 170 ~ 280 VAC / 90 ~ 280 VAC

• Frequency Range: 50/60 Hz

AC Output

• Output Voltage: 220 / 230 / 240 VAC

• Output Waveform: Pure Sine Wave

• Rated Frequency: 50 / 60 Hz

• Efficiency: 93% Max

• Transfer Time:

• 10 ms (Narrow Range)

• 20 ms (Wide Range)

Battery

• Battery Type: Lithium & Lead-acid

• Nominal DC Voltage

• Floating Charge Voltage

• Overcharge Protection

Solar Charger & AC Charger

• Max PV Open Circuit Voltage: 500 VDC

• MPPT Voltage Range (Operating): 60 – 450 VDC

• Max Input Current

• Max Solar Charging Current

• Max AC Charging Current

• Max Charging Current

Display & Interface

• Parallel Function: Up to 6 Units

• Display: 5” Colorful LCD

• Communication:

• Standard: RS232, CAN & RS485

• Optional: WiFi, Bluetooth

Environment

• Humidity: 5 ~ 90% RH (No Condensing)

• Operating Temperature: –10°C to 50°C

Size & Weight

• Net Weight: 48 / 54 / 63 KG

• Dimensions (D × W × H): 610 × 440 × 160 mm

Power Ratings

• 10200 VA / 10200 W

• 11000 W (5500 × 2)

• 13000 W (6500 × 2)

• 16000

• 22000
